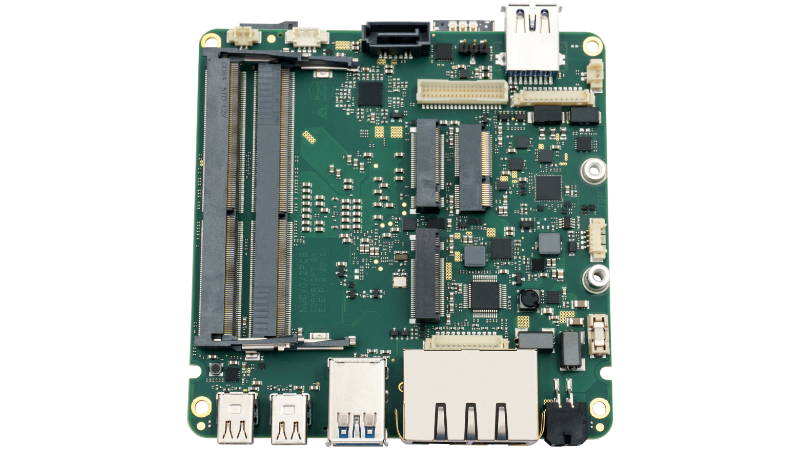

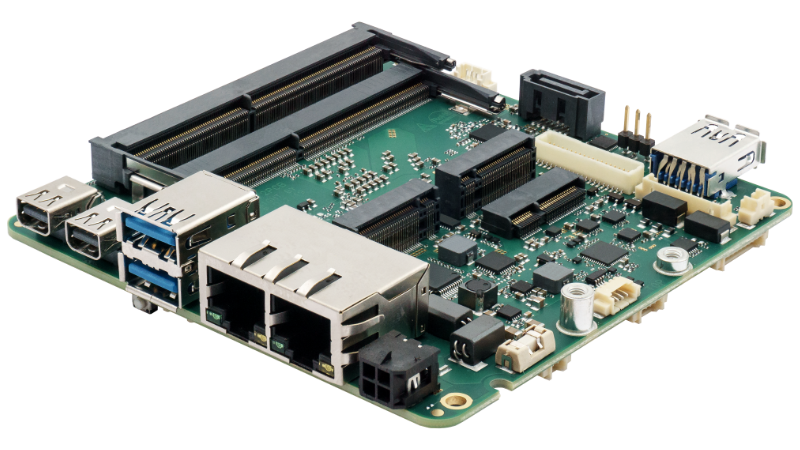

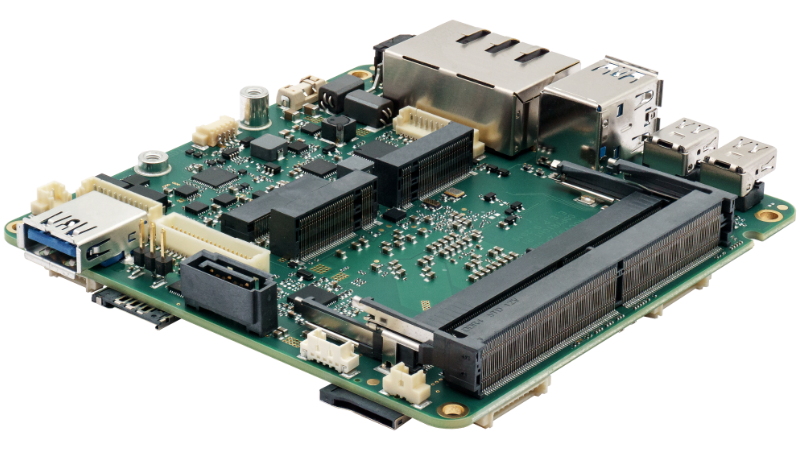

SBC PROFIVE® NUCD
The industrial PROFIVE® Single Board Computer NUCD was designed in the embedded NUC™ standard and is based on the AMD Ryzen™ Embedded R2000 platform. It is characterised by excellent power-per-watt performance and a superior integrated graphics unit. This board forms the basis for the NUCD product series.
The NUCD SBC features a wide input voltage range from 8 VDC to 32 VDC as well as a special pre-fitting for vehicle use, including an input for continuous plus (terminal 30) and ignition plus (terminal 15). In addition, a special overvoltage protection circuit is implemented, which takes load-dump scenarios in particular into account.
Keyfeatures
- up to 32 GB dual channel DDR4 memory
- 2 2,5 Gigabit Ethernet ports Intel® I225-LM with IEEE1588
- TSN support / Wake-on-LAN supported by one port
- 1 MicroSD card slot
- 3 M.2 - Type B, Type E, Type M
- 1 SATA (6G) with separate power connector
- 1x Dual USB 3.2 Gen2 (10 Gb/s, OCP = 1500 mA each)
- 1x rear USB 3.1 Gen2 (10 Gb/s, OCP = 1500 mA each)
- internal USB: 1x 3.2 Gen1 (5 Gb/s, OCP = 900 mA)
and up to 2x USB 2.0 (480 Mb/s, OCP = 500 mA each) - 1 RS-232 port + 1 RS-232/485 port
- 1 24-bit dual channel LVDS connector (OEM/ODM option)
- 2 Mini-DP++ connector up to 4096 x 2160 @ 60 Hz
- fTPM - AMD firmware Trusted Platform Module | TPM 2.0 support (Infineon SLB 9670)
- min. 10,8 VDC to 26,4 VDC power supply range
- operating temperature range: commercial at 0 °C to +60 °C; other on request
- storage temperature range: from –40 °C to +85 °C
- max. rel. humidity: 95% @ 40 °C, non-condesing while stored | 89% while working
- size: approx. 102 mm x 102 mm
CPU types available
Different CPUs with a TDP of 12 W - 54 W1 are used:
AMD Ryzen™ Embedded R2312
2 cores / 4 threads | 2.7 GHz to 3.5 GHz | TDP: 12 W to 25 W
AMD Ryzen™ Embedded R2314
4 cores / 4 threads | 2.1 GHz tos 3.5 GHz | TDP: 12 W to 25 W
AMD Ryzen™ Embedded R2514
4 cores / 8 threads | 2.1 GHz to 3.7 GHz | TDP: 12 W to 35 W
AMD Ryzen™ Embedded R2544
4 cores / 8 threads | 3.35 GHz to 3.7 GHz | TDP: 35 W to 54 W1
1 The NUCD supports max. 35 W TDP
Downloads
with integrated active cooling solution
The advantage: Equipped with a compact active cooling solution
this single-board computer can be integrated immediately and is ready for use.
Differences to the basic board
active cooling solution included
size: approx. 113 mm x 46 mm x 109 mm
weight: approx. 330 g + options
size: approx. 102 mm x 102 mm
data sheet

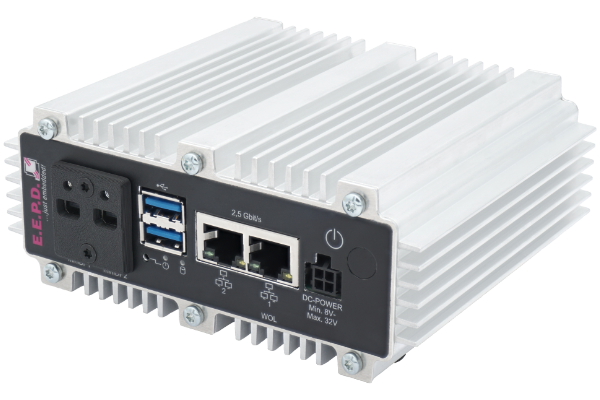

BoxPC with passive cooling
The advantage: The system is low-maintenance thanks to the silent & fanless passive cooling and is suitable for 24/7 continuous operation due to its robust design and the high-quality components built in. The compact dimensions allow installation in numerous applications. Thanks to the closed design, the systems can also be used in harsh environments.
Differences to the basic board
including silent & fanless passive cooling
size: approx. 130 mm x 56 mm x 119 mm
weight: approx. 900 g + options
size: approx. 102 mm x 102 mm
the professional IT solution
The advantage: derived from the industrial NUC BoxPC, our EM PRO mini® is the perfect communication unit for commercial applications and it ensures a secure and reliable corporate communication.
Differences to the basic board
including mounted heatspreader
The advantage: The heatspreader, which also serves as a mounting plate, distributes the CPU heat to a larger cooling solution in the user's application. The mounting plate is compatible within the E.E.P.D. "easy to integrate" solutions, making it very easy to scale between performance classes. On the service side, this solution also brings great advantages, including fast replacement.
Differences to the basic board
mounted heatspreader included
size: approx. 111 mm x 31 mm x 103 mm
weight: approx. 250 g + options
size: approx. 102 mm x 102 mm
waterproof BoxPC with passive cooling
The advantage: The system is low-maintenance thanks to the silent & fanless passive cooling and is suitable for 24/7 continuous operation due to its robust design and the high-quality components built in. The compact dimensions allow installation in numerous applications. Thanks to the closed design, the systems can also be used in harsh environments.
